Cast Iron Body

Polaris [PH]

Features

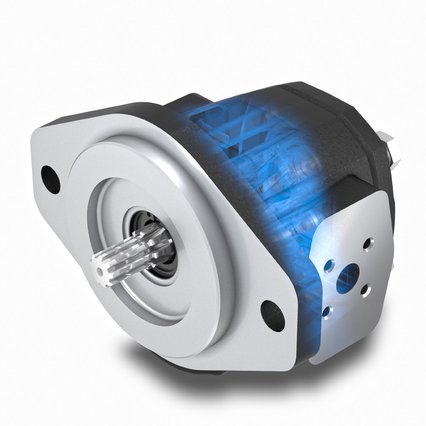

Gear pumps and motors built in three pieces with cast iron body.

The new gear pumps and motors "PH" series is an evolution of the "POLARIS" series.
"POLARIS PH" has a new body made of cast iron to have higher operating parameters and keep the full POLARIS versatility regarding shafts, flanges, ports and built-in valves.

This project is targeted for forklifts, skid steer loaders and all those applications where traditional aluminium pumps are being pushed close to their limits. The possibility to mate the body with the cast iron covers further reduces noise levels, in addition to increasing strength.

Displacements from 0.50 in³/rev (8,26 cm³/rev) to 2.01 in³/rev (33,03 cm³/rev).
Max. peak pressure up to 4350 psi (300 bar).
Max. speed up to 3500 min¹

  • High working pressure also for high displacements
  • Long service life
  • Low noise level
  • High volumetric efficiency also at high temperature
  • Inlet & Outlet optimization – High speed
  • Combination in multiple pumps
  • Built-in Valves simplify circuit design



Built-in valves

  • Anti-cavitation valves
  • Maximum pressure relief valves
  • Priority valves
  • “Load sensing” priority valves
  • By-pass electric valves
  • Proportional relief valves
  • Reverse valves

Kappa [K]

Features

Gear pumps and motors made of cast iron in two pieces.

A rigid and compact structure that makes it possible to incorporate a number of functions in a limited space.

Wide range of displacements: from 0.30 in³/rev (4,95 cm³/rev) to 9.20 in³/rev (150,79 cm³/rev) available in groups 20, 25, 30, 35 and 40.
Max. peak pressure up to 4785 psi (330 bar).
Max. speed up to 4000 min-1

  • High operating pressures
  • High efficiency at high temperature
  • Low noise emission
  • Exceptional working life expectancy
  • Solid and compact design
  • Custom design



Built-in valves

  • Antishock and anti-cavitation valves
  • Priority valves
  • "Load sensing" priority valves
  • By-pass electric valves

Formula [FP]

Features

Gear pumps made of cast iron in two pieces.

Ideal for truck application.

Displacements from 0.50 in³/rev (8,26 cm³/rev) to 9.20 in³/rev (150,79 cm³/rev) available in groups 20, 30, 35 and 40.
Max. peak pressure up to 4713 psi (325 bar).
Max. speed up to 3000 min-1

  • High performance also at very low speeds
  • Different ports position availability
  • Low noise emission
  • Shaft seal system no leakage guarantee
  • Modular design
  • Direct mounting on the PTOs

Magnum [HD]

Features

Gear pumps and motors made of cast iron in three pieces.

An extremely versatile and reliable design, also in the most extreme operating conditions.

Displacements from 1.05 in³/rev (17,28 cm³/rev) to 7.66 in³/rev (125,63 cm³/rev) available in groups 30 and 35.
Max. peak pressure up to 4640 psi (320 bar).
Max. speed up to 3000 min-1

  • Wide range of drive shafts and flanges in SAE version
  • More choices of port locations
  • Integrated outboard bearings for heavy duty applications
  • Multiple units available in standard version, common inlet and separated stages
  • Exceptional working life expectancy
